A Comprehensive Explanation of the C-axis Function in CNC Machine Tools

 In modern CNC machining, the C axis, as a key rotational axis, directly determines a machine tool’s capability to machine complex parts. This article clearly defines the C axis, breaks down its core functions, and helps practitioners quickly understand its role and value.



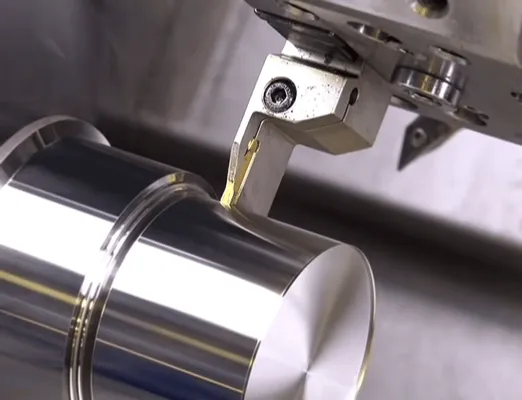

1. What is the C Axis in CNC Machine Tools

The basic coordinate axes of CNC machine tools are three linear axes: X, Y, and Z. The C axis is a rotational axis that rotates 360° around the Z axis (spindle centerline), forming a multi-axis machining system together with linear axes.



The C axis is mainly implemented in two forms: rotary table type and tilting head type. Its core function is to provide precise circular rotation for the workpiece or cutting tool, breaking through the limitations of conventional linear-axis machining and enabling the machining of complex circular and curved surfaces.



Unlike the A axis (rotating around the X axis) and B axis (rotating around the Y axis), the C axis rotates only around the Z axis with a precision of up to ±0.001°. It requires coordination with driven tools and a CNC system, and is controlled via G-code to complete machining operations.



2. Core Functions and Applications of the CNC C Axis

Centered on precision rotation + multi-axis simultaneous motion, the C axis delivers four major functions to meet diverse machining requirements:

(1) Circular Indexing and Precision Positioning

As the basic function of the C axis, it can rotate the workpiece around the Z axis to a specified angle and lock it in place for multi-sided machining. Eliminating repeated clamping, it improves the efficiency and accuracy of machining parts with uniformly distributed circular features, such as sprockets and radial holes.

(2) Simultaneous Motion with Linear Axes for Complex Curve Machining

The C axis can move simultaneously with the X and Z axes (lathes) or X, Y and Z axes (machining centers) to produce complex curves including helices, threads, and helical grooves. This is its key advantage over conventional indexing plates.

(3) Combined Machining with Driven Tools

CNC machine tools equipped with a C axis are generally fitted with driven tools, enabling one-time clamping, multi-process machining. This shortens production flows and reduces costs, suitable for parts such as automotive half shafts and impellers.

(4) Continuous Rotation Control for Special Machining Needs

The C axis can rotate continuously at a constant speed. Combined with linear axes, it performs surface engraving, precision grinding, and other operations, widely used in precision molds and aerospace components.



3. Core Value of the C Axis

The value of the C axis lies in three aspects:

· Improved machining accuracy by reducing clamping errors;

· Higher machining efficiency through combined machining;

· Expanded machining range to meet the demands of high-end manufacturing.



With advances in CNC technology, the precision and functionality of the C axis

continue to improve, making it an important indicator of the trend toward integrated, high-precision CNC machine tools. Mastering its application is critical to enhancing machining capabilities.
